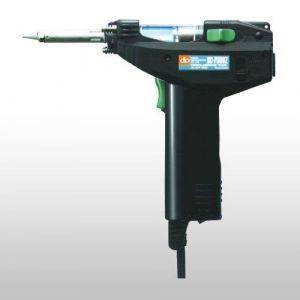

DEN-ON SC7000Z Portable Desoldering Gun with Stand

I personally Guarantee the DEN-ON SC7000Z to be the fastest, most efficient, most practical desoldering gun that an Electronics Technician could adorn his or her service bench. You simply cannot believe it until you try it.

Jerry Howard, CEO
Howard Electronic Instruments, Inc.

Check out the History of the DEN-ON SC7000Z Desoldering Tool.

List price: $445.00
$395.00
You save: $50.00 (11%)
Please choose the mains power.
USA 110 Volt Plug Euro 230 Volt Plug
SC7000Z
+

DEN-ON SC7000Z Portable Desoldering Gun sold by Howard Electronics

Includes: ST-800 Stand.

Comes with 1.0mm Standard Tip.

Den-On SC7000Z Desoldering Gun is the best totally self-contained transportable desoldering gun in the world. Den-On SC7000Z is a Powerful thru-hole Desoldering Gun and a functional Hot-Air-Tool for SMD Rework of QFP's and PLCC's (with the purchase of the SMD Kit.) The SMD Kit is specifically designed for blowing hot air with the SC-7000Z for removal of Surface Mount Devices of all Kinds. With the use of the wire and shim-blade holder, most SMD's can be easily reworked. Kit contains Hot Air Tip for Den-ON SC7000Z, clean filter for hot air only, wire and shim-blade holder and supplies, and case for containing pieces.

Read the Product Evaluation by Rick Littlefield of Communications Quarterly

DEN-ON SC7000Z Desoldering Gun Tool with Stand

  • Den-On SC7000Z has a Totally Self Contained diaphragm vacuum pump and AC motor for high vacuum suction or reversible hot air blow for SMD removal.
  • Den-On SC7000Z has a 100 Watt Ceramic heater with zero-crossover switching heater control circuit which prevents spikes and leakage currents.
  • Unique patented long lasting filter cartridge design. Solder builds up on easily cleaned baffle, while air flows around the outside of baffle.
  • Den-On SC7000Z is totally ESD Safe. The housing contains carbon and the tip is at ground potential for complete ESD protection.
  • Den-On SC7000Z Maximum vacuum of 650mmHg is attained in 0.1 seconds.
  • Den-On SC7000Z Temperature adjustable from 350 C - 500 C or 572 F - 932 F
  • Den-On SC7000Z Compact, light-weight unit is transportable and ready to use at any location.

Read the Equipment Report from Electronics Now Magazine

SC7000Z Den-On Desoldering Gun Tool Specifications

  • SC7000Z Voltage - AC100V, 120V, 230V, 50/60HZ
  • SC7000Z Power consumption - 120W
  • SC7000Z Pump - Diaphragm type
  • SC7000Z Motor output - 12W
  • SC7000Z Vacuum attained - 650mmHg
  • SC7000Z Time required to reach maximum vacuum - 0.1 seconds
  • SC7000Z Air flow rate - 15 liter/minute (open)
  • SC7000Z Heater - 100W (Ceramic)
  • SC7000Z Control system - Feed back zero cross over type
  • SC7000Z Temperature range - 350 C - 500 C
  • SC7000Z Insulation Resistance - More than 100M
  • SC7000Z Max. Temp. of Hot Blow - 400C
  • SC7000Z Net Weight - 420g - Less than one pound
  • 60 Day Money Back Total Satisfaction Guarantee
    One Year Parts / Labor Warranty performed in-house

  • DEN-ON SC7000Z Portable Desoldering Gun Articles of Interest.

    Read the Testimonials on the DEN-ON SC7000Z Desoldering Gun
    Check out the History of the DEN-ON SC7000Z Desoldering Gun
    Den-on SC7000Z Tips for your tip's that won't leave you PLUGGED

    Purchase DEN-ON SC7000Z Portable Desoldering Gun Today.

    ESD Safe:
    Yes
    Max. Temp. of Hot Blow:
    400°C
    Motor Output:
    12W
    Net Weight:
    0.87 lbs
    Part No.:
    SC7000Z
    Power Consumption:
    120 Watts
    Vendors :
    Den-On Instruments
    Available Voltage:
    Weight:
    420g - Less than a pound
    Shipping Weight:
    4 lbs
    Power Cord:
    1.5m (3 core cable) ground plug
    Power Cord:
    1.5m (3 core cable) ground plug
    70-08-00
    $25.00 $20.00

    DEN-ON 70-08-00 FILTER CARTRIDGE FOR SC7000Z 5PC SET

    +

    70-07-00
    $29.45 $25.00
    70-07-00, Den-On Instruments

    Den-On 70-07-00 Front Pipe Setter

    +

    70-06-00
    $39.00 $35.00

    DEN-ON 70-06-00 HEATER ELEMENT

    +

    70-26-00
    $9.65 $8.00
    70-26-00, Den-On Instruments

    DEN-ON 70-26-00 DIAPHRAM

    +

    70-03-00
    $32.89 $28.00
    70-03-00, Den-On Instruments

    DEN-ON 70-03-00 HEATER HOLDER

    +

    70-05-00
    $3.44 $3.00
    70-05-00, Den-On Instruments

    DEN-ON 70-05-00 MICA INSULATOR

    +

    70-10-00
    $12.81 $11.00
    70-10-00, Den-On Instruments

    DEN-ON 70-10-00 FILTER CHAMBER

    +

    70-51-00
    $10.07 $9.00
    70-51-00, Den-On Instruments

    DEN-ON 70-51-00 CLEANING PIN SET

    +

    50-51-00
    $6.44 $5.00

    50-51-00 Den-On Cleaning Pin for DEN-ON SC7000Z

    +

    72-78-01
    $45.60 $40.00

    DEN-ON 72-78-01 TIP HOT AIR

    +

    70-37-32
    $3.50 $2.50
    70-37-32, Den-On Instruments

    DEN-ON 70-37-32 FUSABLE RESISTOR

    +

    70-37-60
    $9.65 $8.00
    70-37-60, Den-On Instruments

    DEN-ON 70-37-60 MICROSWITCH

    +

    70-37-70
    $9.65 $8.00

    DEN-ON 70-37-70 DUST COVER

    +

    70-37-81
    $16.44 $14.00
    70-37-81, Den-On Instruments

    DEN-ON 70-37-81 POWER SWITCH

    +

    70-43-00
    $5.74 $5.00

    DEN-ON 70-43-00 TRIGGER

    +

    72-36-00
    $7.16 $6.00

    DEN-ON 70-36-00 TEMPERATURE KNOB

    +

    70-35-00
    $7.16 $6.00

    DEN-ON 70-35-00 Vibration Isolator Pad (M)

    +

    70-29-00
    $5.68 $4.50

    DEN-ON 70-29-00 ANTI VIBRATION PAD

    +

    70-31-51
    $11.52 $10.00

    DEN-ON 70-31-51 CRANKSHAFT ASSEMBLY

    +

    70-33-00
    $6.02 $5.00

    DEN-ON 70-33-00 Balancer

    +

    70-34-00
    $53.00 $47.00

    DEN-ON 70-34-00 MOTOR 100-120V

    +

    70-44-02
    $29.24 $24.00

    DEN-ON 70-44-02 POWER CORD

    +

    72-45-00
    $44.74 $38.00

    DEN-ON 72-45-00 HOUSING

    +

    72-11-00
    $12.81 $11.00

    DEN-ON 72-11-00 REAR PIPE SETTER (GREEN)

    +

    72-37-50
    $44.74 $38.00

    72-37-50 Den-On Main PCB 230v

    +

    72-37-80
    $44.74 $38.00
    72-37-80, Den-On Instruments

    DEN-ON 72-37-80 MAIN PCB FOR SC7000Z

    +

    72-43-00
    $6.50 $3.50
    72-43-00, Den-On Instruments

    72-43-00 Den-on Trigger green

    +

    70-46-00
    $0.30

    DEN-ON 70-46-00 PAN SCREW

    +

    70-55-00
    $5.44 $4.50

    DEN-ON 70-55-00 Pan Screw 3x35 & Hex Net (5 pcs)

    +

    70-49-00
    $1.15 $1.00

    70-49-00 DEN-ON Vibration Isolator Pad

    +

    70-50-00
    $4.57 $4.00

    70-50-00 DEN-ON Set Screw 4-4

    +

    70-28-51
    $57.00 $53.00

    DEN-ON 70-28-51 PUMP ASSEMBLY

    +

    70-28-00
    $9.65 $8.00
    70-28-00, Den-On Instruments

    DEN-ON 70-28-00 FRAME

    +

    70-12-00
    $4.15 $2.50
    70-12-00, Den-On Instruments

    DEN-ON 70-12-00 SILICONE TUBE

    +

    70-13-00
    $4.15 $2.50

    DEN-ON 70-13-00 SPRING (T)

    +

    70-15-00
    $4.50 $4.00

    DEN-ON 70-15-00 PLAIN WASHER

    +

    70-06-50
    $39.00 $35.00

    70-06-50 Den-On Heating element for 230v

    +

    70-04-00
    $5.00 $4.00

    DEN-ON 70-04-00 PAN SCREW

    +

    70-06-10
    $3.50 $2.50
    70-06-10, Den-On Instruments

    DEN-ON 70-06-10 PROTECTOR

    +

    70-16-00
    $4.15 $2.50

    DEN-ON 70-16-00 SPRING (T)

    +

    70-17-00
    $7.16 $6.00
    70-17-00, Den-On Instruments

    DEN-ON 70-17-00 VALVE

    +

    70-24-00
    $5.57 $4.00

    DEN-ON 70-24-00 FLAT SCREW 3-6

    +

    70-25-00
    $6.59 $5.00

    DEN-ON 70-25-00 WASHER

    +

    70-27-00
    $6.02 $5.00

    DEN-ON 70-27-00 ARM ROD

    +

    70-23-00
    $9.65 $8.00
    70-23-00, Den-On Instruments

    DEN-ON 70-23-00 PUMP BASE (A)

    +

    70-22-00
    $6.59 $5.00
    70-22-00, Den-On Instruments

    DEN-ON 70-22-00 SEAT VALVE

    +

    70-18-00
    $7.16 $6.00

    DEN-ON 70-18-00 LEVER

    +

    70-19-00
    $6.02 $5.00
    70-19-00, Den-On Instruments

    DEN-ON 70-19-00 GASKET

    +

    70-20-00
    $5.00 $4.50

    DEN-ON 70-20-00 FLAT SCREW 3-18

    +

    70-21-00
    $7.16 $6.00
    70-21-00, Den-On Instruments

    DEN-ON 70-21-00 PUMP BASE (B)

    +
    50-01-17
    $40.00 $35.95
    ID = 1.5mm OD = 2.2mm, Den-On Instruments

    DEN-ON 50-01-17 DESOLDERING TIP 1.5MM SLIM

    +

    50-01-11
    $40.00 $35.95
    ID = 0.8mm OD = 2.5mm, Den-On Instruments

    DEN-ON 50-01-11 DESOLDERING TIP 0.8MM

    +

    50-01-14
    $40.00 $35.95
    ID = 1.0mm OD = 2.5mm, Den-On Instruments

    DEN-ON 50-01-14 DESOLDERING TIP 1.0MM STANDARD

    +

    50-01-13
    $40.00 $35.95
    ID = 0.8mm OD = 1.5mm, Den-On Instruments

    DEN-ON 50-01-13 DESOLDERING TIP 0.8MM ULTRA SLIM

    +

    50-01-16
    $40.00 $35.95
    ID = 1.0mm OD = 2.0mm, Den-On Instruments

    DEN-ON 50-01-16 DESOLDERING TIP 1.0MM SLIM

    +

    50-01-15
    $40.00 $35.95
    ID = 1.5mm OD = 3.0mm, Den-On Instruments

    DEN-ON 50-01-15 DESOLDERING TIP 1.5MM

    +
    70-43-00
    $5.74 $5.00

    DEN-ON 70-43-00 TRIGGER

    +

    70-37-81
    $16.44 $14.00
    70-37-81, Den-On Instruments

    DEN-ON 70-37-81 POWER SWITCH

    +

    70-44-02
    $29.24 $24.00

    DEN-ON 70-44-02 POWER CORD

    +

    72-45-00
    $44.74 $38.00

    DEN-ON 72-45-00 HOUSING

    +

    70-46-00
    $0.30

    DEN-ON 70-46-00 PAN SCREW

    +

    70-37-70
    $9.65 $8.00

    DEN-ON 70-37-70 DUST COVER

    +

    70-37-60
    $9.65 $8.00
    70-37-60, Den-On Instruments

    DEN-ON 70-37-60 MICROSWITCH

    +

    70-34-00
    $53.00 $47.00

    DEN-ON 70-34-00 MOTOR 100-120V

    +

    70-33-00
    $6.02 $5.00

    DEN-ON 70-33-00 Balancer

    +

    70-35-00
    $7.16 $6.00

    DEN-ON 70-35-00 Vibration Isolator Pad (M)

    +

    72-36-00
    $7.16 $6.00

    DEN-ON 70-36-00 TEMPERATURE KNOB

    +

    70-37-32
    $3.50 $2.50
    70-37-32, Den-On Instruments

    DEN-ON 70-37-32 FUSABLE RESISTOR

    +

    70-55-00
    $5.44 $4.50

    DEN-ON 70-55-00 Pan Screw 3x35 & Hex Net (5 pcs)

    +

    70-49-00
    $1.15 $1.00

    70-49-00 DEN-ON Vibration Isolator Pad

    +

    72-43-00
    $6.50 $3.50
    72-43-00, Den-On Instruments

    72-43-00 Den-on Trigger green

    +

    72-37-80
    $44.74 $38.00
    72-37-80, Den-On Instruments

    DEN-ON 72-37-80 MAIN PCB FOR SC7000Z

    +

    08-04-00
    $4.49 $3.50

    DEN-ON 08-04-00 SPRING FOR STAND

    +

    08-05-00
    $6.02 $5.00

    DEN-ON 08-05-00 NECK JAR

    +

    72-37-50
    $44.74 $38.00

    72-37-50 Den-On Main PCB 230v

    +

    72-11-00
    $12.81 $11.00

    DEN-ON 72-11-00 REAR PIPE SETTER (GREEN)

    +

    70-50-00
    $4.57 $4.00

    70-50-00 DEN-ON Set Screw 4-4

    +

    70-51-00
    $10.07 $9.00
    70-51-00, Den-On Instruments

    DEN-ON 70-51-00 CLEANING PIN SET

    +

    72-78-00
    $68.00 $62.00
    72-78-00, Den-On Instruments

    72-78-00 DEN-ON SMD TOOL KIT

    +

    72-78-01
    $45.60 $40.00

    DEN-ON 72-78-01 TIP HOT AIR

    +

    70-31-51
    $11.52 $10.00

    DEN-ON 70-31-51 CRANKSHAFT ASSEMBLY

    +

    70-29-00
    $5.68 $4.50

    DEN-ON 70-29-00 ANTI VIBRATION PAD

    +

    70-12-00
    $4.15 $2.50
    70-12-00, Den-On Instruments

    DEN-ON 70-12-00 SILICONE TUBE

    +

    70-10-00
    $12.81 $11.00
    70-10-00, Den-On Instruments

    DEN-ON 70-10-00 FILTER CHAMBER

    +

    70-13-00
    $4.15 $2.50

    DEN-ON 70-13-00 SPRING (T)

    +

    70-15-00
    $4.50 $4.00

    DEN-ON 70-15-00 PLAIN WASHER

    +

    70-16-00
    $4.15 $2.50

    DEN-ON 70-16-00 SPRING (T)

    +

    70-08-00
    $25.00 $20.00

    DEN-ON 70-08-00 FILTER CARTRIDGE FOR SC7000Z 5PC SET

    +

    70-07-00
    $29.45 $25.00
    70-07-00, Den-On Instruments

    Den-On 70-07-00 Front Pipe Setter

    +

    70-05-00
    $3.44 $3.00
    70-05-00, Den-On Instruments

    DEN-ON 70-05-00 MICA INSULATOR

    +

    70-04-00
    $5.00 $4.00

    DEN-ON 70-04-00 PAN SCREW

    +

    70-06-00
    $39.00 $35.00

    DEN-ON 70-06-00 HEATER ELEMENT

    +

    70-06-10
    $3.50 $2.50
    70-06-10, Den-On Instruments

    DEN-ON 70-06-10 PROTECTOR

    +

    70-06-50
    $39.00 $35.00

    70-06-50 Den-On Heating element for 230v

    +

    70-17-00
    $7.16 $6.00
    70-17-00, Den-On Instruments

    DEN-ON 70-17-00 VALVE

    +

    70-18-00
    $7.16 $6.00

    DEN-ON 70-18-00 LEVER

    +

    70-26-00
    $9.65 $8.00
    70-26-00, Den-On Instruments

    DEN-ON 70-26-00 DIAPHRAM

    +

    70-25-00
    $6.59 $5.00

    DEN-ON 70-25-00 WASHER

    +

    70-27-00
    $6.02 $5.00

    DEN-ON 70-27-00 ARM ROD

    +

    70-28-00
    $9.65 $8.00
    70-28-00, Den-On Instruments

    DEN-ON 70-28-00 FRAME

    +

    70-28-51
    $57.00 $53.00

    DEN-ON 70-28-51 PUMP ASSEMBLY

    +

    70-24-00
    $5.57 $4.00

    DEN-ON 70-24-00 FLAT SCREW 3-6

    +

    70-23-00
    $9.65 $8.00
    70-23-00, Den-On Instruments

    DEN-ON 70-23-00 PUMP BASE (A)

    +

    70-19-00
    $6.02 $5.00
    70-19-00, Den-On Instruments

    DEN-ON 70-19-00 GASKET

    +

    70-20-00
    $5.00 $4.50

    DEN-ON 70-20-00 FLAT SCREW 3-18

    +

    70-21-00
    $7.16 $6.00
    70-21-00, Den-On Instruments

    DEN-ON 70-21-00 PUMP BASE (B)

    +

    70-22-00
    $6.59 $5.00
    70-22-00, Den-On Instruments

    DEN-ON 70-22-00 SEAT VALVE

    +

    70-03-00
    $32.89 $28.00
    70-03-00, Den-On Instruments

    DEN-ON 70-03-00 HEATER HOLDER

    +

    SC7000Z Manual (SC7000Manual.PDF, 181 Kb) [Download]

    Tips for your tips that won't leave you PLUGGED. (Tips_for_Tips.pdf, 37 Kb) [Download]
