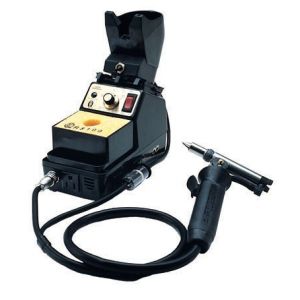

EDSYN ZD505V DESOLDERING STATION (SHOP AIR)

List price: $1,122.11
$950.95
You save: $171.16 (15%)
ZD505V
+

This station offers high performance desoldering while remaining cost-efficient for you. The station features a maximum heat transfer for heavy duty desoldering with no crossing circuitry so it remains ESD safe. Includes PM100 vacuum generator and HT500 hand tool with ZD13 tip.

  • Outstanding performance and cost-efficient desoldering station ideal for heavy duty applications that require maximum heat transfer (requires clean and dry shop air, 60-90 psi)
  • Powerful 70W high output PTC element makes heavy multi-layer boards easy to desolder
  • Adjustable ergonomic hand tool design provides comfortable working angles
  • Easy to maintain and calibrate with external calibration feature
  • 18 month warranty
  • ESD safe
  • Package Contents:
  • Part No. Description ZD505V SOLDAPULLT Shop air powered hot tip desoldering station includes PM100 vacuum generator and HT500 hand tool with ZD13 tip
  • SH230 Sponge holder with RS199 cleaning sponge
  • Accessory Kit:
  • Part No. Description WT623 Tip wrench, dual open end, 1/4" & 3/4"
  • WT619 Tip wrench, for retaining sleeve
  • WP556 WIGAPRY mini screwdriver and calibration aid tool
  • CS468 Tip cleaning shaft for desoldering tips CS468-1 Tip cleaning shaft for small desoldering tips
  • AN112 Anti-seize compound
  • OL111 O-Ring lube
  • MS229 Mica sheet for HT500
  • AF629 Felt filter set for AF110
  • AF625 Felt filter for HT500
  • AF040 Foam filter for AF110
Dimensions:
5.0"W x 9.5"H x 9.0"D (127 mm x 241 mm x 229 mm)
ESD Safe:
Yes
Part No.:
ZD505V
Vendors :
Edsyn
Available Voltage:
120V, 60Hz
Weight:
4.1lbs/1.8kg
