View Solutions MV02011121 10" LCD Zoom Inspection Body

List price: $2,122.96
$1,786.00
You save: $336.96 (16%)
MV02011121
+

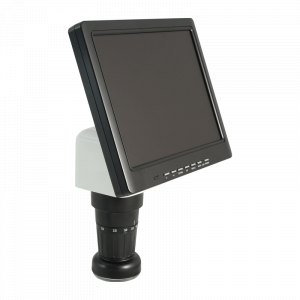

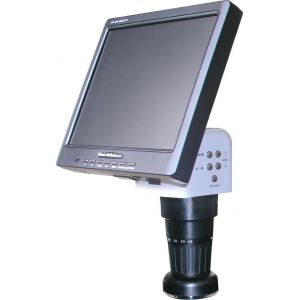

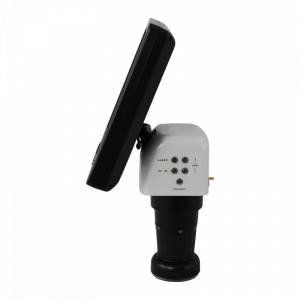

View Solutions MV02011121 High Resolution LCD Zoom Inspection System includes a Video Zoom microscope with a 10" LCD viewable monitor (Native resolution: 1024 × 768) Dot pitch: 0.297mm, Contrast: 300:1, Viewing Angle: about 150°, Response Time: ≤25ms, Brightness: 250cd/m 2, Video Output: BNC (PAL / NTSC). Total magnification of the MV02011121 ( 10" = 3.2x - 198x). (See Chart Below) The MV02011121 LCD Inspection System has a zoom body of 0.7-4.5x with detents with a zoom ratio of 1:6.5. Optional objective lens are available. The View Solutions MV02011121 LCD Zoom System has a built in LED ring light with adjustable brightness and laser pointer for accurate inspection of small parts.

View Solutions MV02011121 LCD Zoom Inspection System Features

  • View Solutions MV02011121 LCD Video Inspection System Microscope (Total magnification: 10" LCD 3.2x - 198x)
  • 10.4" Viewable LCD Monitor (16MS high definition color)

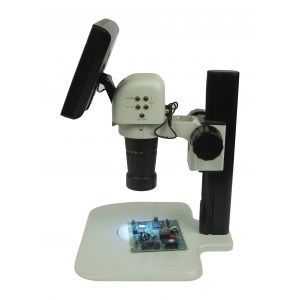

  • Purchase in Packages with selected stand.
  • LED ring light: DC 12V, 0.5mA with adjustable brightness
  • Viewing Angle: about 150° (Adjustable)
  • Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X
  • Video Output: BNC (PAL / NTSC)
  • Microscope Documentation.
  • Laser pointer: DC 5V
  • Used for teaching, scientific research, electronic testing and more.
  • One year optics warranty - One year on Monitor.
  • Power Supply: AC 85-265V, 50/60Hz

  • View Solutions MV02011121 LCD Monitor Specifications

    Viewable: 10.4" Viewing Angle: about 150°
    Native resolution: 800 × 600 for 8 inch monitor
    1024 x 768 for 10.4 inch monitor
    Response Time:≤25ms
    Dot pitch: 0.297mm Brightness: 300cd/m 2 for 10 inch monitor
    Contrast: 350:1 for 10 inch monitor Video Output: BNC (PAL / NTSC)

    View Solutions MV02011121 LCD Inspection System Optic Specifications

    Optional illuminator is available
    Laser pointer: DC 5V
    Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
    Power supply: 85-265V, 50/60Hz

    View Solutions MV02011121 LCD Inspection System Accessories

    Optional illuminator is available
    Laser pointer: DC 5V
    Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
    Power supply: 85-265V, 50/60Hz


    Magnification shown with standard 0.5x coupler (No Optional Coupler Available)

    Auxiliary Lens Zoom Range Magnification with 8 inch Monitor W.D.(mm)
    0.7 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
    0.3x 3.6x 5.1x 7.6x 10.2x 12.7x 15.2x 17.8x 20.3x 22.9x 331
    0.5x 5.9x 8.5x 12.7x 16.9x 21.2x 25.4x 29.7x 33.8x 38.1x 198
    0.75x 8.9x 12.7x 19.1x 25.4x 31.7x 38.1 44.5 50.8x 57.1x 131
    1.0x Standard 11.9x 16.9x 25.4x 33.9x 42.3x 50.8x 59.3x 67.7x 76.2x 96
    1.5x 17.8x 25.4x 38.1x 50.8x 63.5x 76.2x 89.0x 101.6x 114.3x 63
    2.0x 23.7x 33.9x 50.8x 67.7x 84.7x 101.6x 118.6x 135.4 152.4x 46
    Auxiliary Lens Zoom Range Magnification with 10 inch Monitor W.D.(mm)
    0.7 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
    0.3x 4.6x 6.3x 9.5x 12.7x 15.8x 19.0x 22.2x 25.3x 29.7x 331
    0.5x 7.7x 10.6x 15.9x 21.1x 26.4x 31.7x 37.0x 42.2x 49.5x 198
    0.75x 11.6x 15.8x 23.8x 31.7x 39.6 47.5x 55.4x 63.3x 74.3x 131
    1.0x Standard 15.4x 21.1x 31.7x 42.2x 52.8x 63.3x 73.9x 84.4x 99.1x 96
    1.5x 23.1x 31.7x 47.6x 63.3x 79.2x 95.0x 110.9x 126.6x 148.6x 63
    2.0x 30.8x 42.2x 63.4x 84.4x 105.6x 126.6x 147.8x 168.8x 198.1x 46


    Optical Data (1/3" CCD, 8" Monitor, 0.5x CCD Coupler

    Coupler

    0.5x

    Auxiliary Lens Magnification FOV mm Working Distance
    0.3x 3.3x~22x 58.8~8.9 331mm (13")
    0.5x 6x~37x 35.2~5.3 198mm (7.8")
    0.75x 8x~55x 23.5~3.6 131mm (5.15")
    1.0x 11x~74x 17.6~2.7 96mm (3.8")
    1.5x 17x~110x 11.8~1.8 63mm (2.5")
    2.0x 22x~147x 8.8~1.3 46mm (1.8")


    Purchase a View Solutions MV02011121 Inspection System sold by Howard Electronics Today!

    Part No.:
    MV02011121
    Vendors :
    View Solutions

    LCD Manual (vm-lcd-manual.pdf, 415 Kb) [Download]
