HEI-MZ-ZBD HEI Scope 0.7x - 4.5x Micro Zoom Body with detents for video Inspection MZ02011102

List price: $398.20
$190.00
You save: $208.20 (52%)
HEI-MZ-ZBD
+

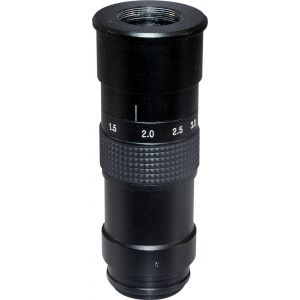

HEI Zoom Bodies have 4 constituents of mechanical compensation structure used to maximally ensure the quality of image. Zoom mode including: manual zoom, manual zoom with detents. MZO series lens must be used with zoom body. 5 year warranty.

  • Zoom Range 0.68X ~ 4.5X
  • Zoom Ratio 6.6
  • Parallel optical path design provides improved resolution and smoothness at the edge of field of view as crisp as the center of the field, ideal for high-precision surveying operation.
  • Provides accommodation for the functional accessories such as coaxial-seated spotlight device, polar light device, variable diaphragm and light-dividing device.
  • "Full Field of View" design allows adding eye lens observation system.
  • Can achieve 400X and more optic magnification capacity by connecting universal "infinite" biological and metallic phase object lens.
  • Optional versatile stand and lighting source to reduce the user's total ownership cost, widely applied in micro-electronics, automatic surveillance and inspection industries.


Optical Specifications:

Based on 14" Monitor & 1/3 CCD Camera

Coupler0.38x 0.5x 0.75x 1.0x 1.5x 2.0x

Working Distance mm

Auxiliary

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

0.3X4.65x-31x 77-12 6x-41x 59-9 9x-61x 39-6 12x-81x 29-4 18x-121x 19.6-3 24x-162x 14.7-2 331
0.5X7.8x-51x 46-7 10x-68x 35-5 15x-101x 23.5-4 20x-135x 17.6-3 31x-203x 11.8-2 41x-270x 8.8-1.3198
0.75X11.6x-77x 31-4.7 15x-101x 23.5-3.6 23x-152x 15.7-2.4 30.6x-202x 12-1.8 46x-304x 7.8-1.2 61x-405x 6-0.9 131
1.0X15.5x-102x 23-3 20x-135x 17.6-2.7 30.6x-202x 12-1.8 41x-270x 9-1 61x-405x

6-0.9

81.6x-540x 4-0.7 96
1.5X23x-154x 15-2.3 31x-203x 11.8-1.8 46x-304x 7.8-1.2 61x-405x 6-0.9 92x-607x 4-0.6 122x-810x 3-0.4 63
2.0X31x-205x 11.6-1.7 41x-270x 8.8-1.3 61x-405x 6-0.9 81.6x-540x 4-0.7 122x-810x 3-0.4 163x-1080x 2-0.3 46
MZ Accessories:



Objective Lens


C-mount Coupler

Iris Diaphragm

USB Camera

CCD Camera

HeiScope's MZ Iris Diaphragm is designed to control the depth of focus through adjusting variable aperture diaphragm in order to obtain a high quality of image.

MZ Iris Diaphragm
HEI-MZ-ID
