SZ05011131 View Solutions Stereo Zoom Trinocular Body Microscope

List price: $855.50
$708.00
You save: $147.50 (17%)
HEI-SZ-T2
+

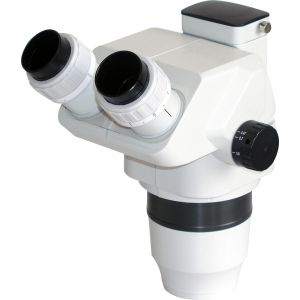

View Solutions HEI-SZ-T2 SZ05011131 Stereo Zoom Trinocular Microscope Body

View Solutions SZ05011131 Stereo Zoom Trinocular Microscope Body has (.67-4.5 Objective Range), 10x Eyepieces with Eye Guards, Ring Light Adaptor and ESD Safe Microscope Cover.

View Solutions SZ05011131 Trinocular Stereo Zoom Microscope is perfect for your professional inspection needs. The brand new SZ05011131 Stereo Zoom Microscope optics design adopted in the SZ Stereo Zoom Microscope facilitates the microscope to deliver excellent flatness, good contrast and high definition images in the wide field, especially on the periphery of Field of View.

View Solutions SZ05011131 Trinocular Stereo Zoom Microscope

The SZ05011131 Stereo Zoom Microscope has a combination of compact design, long working distance and variety of functions enables SZ Stereo Zoom Microscope to be applied in precision of requirements, such as in semi-conductor and other scientific fields. You'll be delighted by the quality and performance of these instruments.

View Solutions SZ05011131 Trinocular Stereo Zoom Microscope Specifications

  • SZ05011131 Microscope has Vivid image, big depth of focus, wide visual field, distinct stereo vision, compact structure.
  • SZ05011131 Microscope Continuous zoom by lateral axis with a zoom rate of 1:6:7.
  • SZ05011131 Microscope main body with separate optical axis structure that the emergent light axis of the ocular and the optical axis of the object form a 20 degree included angle, which is suitable to micro-electronics industry equipment and can effectively reduce labor intensity of the operator, raising work efficiency and product quality.
  • The SZ05011131 Microscope series microscopes are interchangeable with most microscopes on the market making the SZ series more convenient for upgrades.
  • SZ05011131 Microscope can be used for teaching, scientific research, electronic testing and more.
  • SZ05011131 Microscope body Mounting Size for Stand = Φ76mm

View Solutions SZ05011131 Stereo Zoom Trinocular Microscope Specs

Body Optical System Finite
Body Magnification 6.7-45X
Zoom Range 0.67-4.5X
Zoom Ratio 1:6.7
Zoom Operating Mode With Two Horizontal Knobs
Observe Method Trinocular
Body Mounting Size for Stand Φ76mm
The Nosepiece Adapter Size for Ring Light Φ54mm
Eyetube Adjustment Mode Compensating
Eyetube Angle 45°
Erect/Inverted Image Erect image
Eyetube Rotatable 360° Rotatable
Interpupillary Adjustment 54-75mm
Eyetube Inner Dia. Φ30mm
Eyetube Diopter Adjustable ±5°
Eyepiece Type Standard Eyepiece
Eyepiece Optical Magnification 10X
Plan Eyepiece Plan Eyepiece
Eyepiece Size for Eyetube Φ30mm
Eyepiece Field of View Φ22mm
Eyepoint Type High Eyepoint Eyepiece
Eyepiece Size for Reticle Φ24mm
Eye Guard Installation Indepent Eye Guard
Eye Guard Material Rubber
Eye Guard Mount Size Φ36mm
Objective Working Distance 100mm
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 1.73kg (3.81lbs)

Purchase a View Solutions SZ05011131 Trinocular Stereo Zoom Microscope Today!
