HEI-SZIII-B2 SZ05031121 Stereo Zoom Microscope

List price: $320.00
$280.00
You save: $40.00 (13%)
HEI-SZIII-B2
+

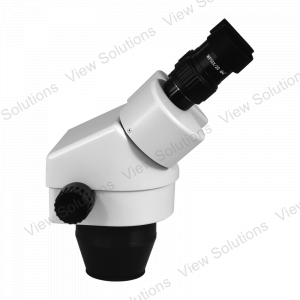

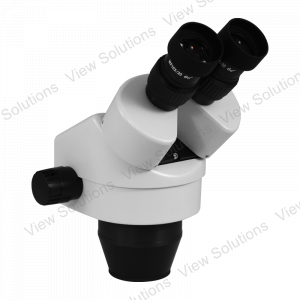

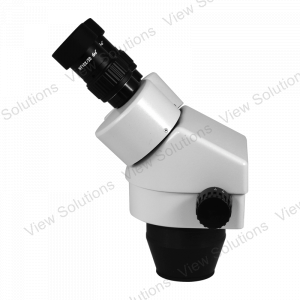

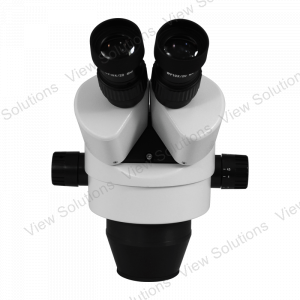

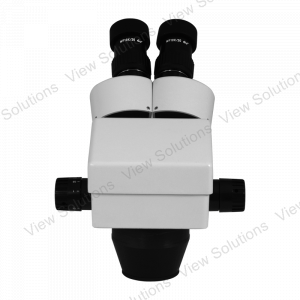

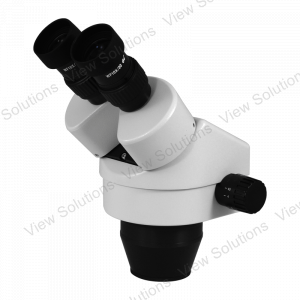

HeiScope HEI-SZIII-B2 SZ05031121features a powerful stereo zoom microscope.

HEIScope HEI-SZIII-B2 features a powerful stereo zoom microscope perfect for your professional inspection needs. HEIScope offers binocular models with vivid images, big depth of focus, wide visual field, distinct stereo vision in a compact structure. You'll be delighted by the quality and performance of these instruments. (5 year Manufacturer's warranty!)

  • Stereo microscope, 10X eyepieces, 76mm post stand and 1.0X Auxiliary Lens.
  • Stereo image with longer depth of field & higher resolution
  • Continuous zoom by lateral axis with a zoom rate of 1:6:5.
  • Two horizontal zoom knobs
  • Eyepieces inclination at 45º
  • Interpupillary distance: 52mm-75mm
  • Can be used for teaching, scientific research, electronic testing and more.
Specifications:
Zoom Range of the Microscope Body0.67x ~ 4.5x
Zoom Rate1 : 6.5
Eyepieces10x \ 15x \ 20x \ 25x \ 30x
Objective Lens0.3x \ 0.5x \ 0.75x \ 1.5x \ 2x
Field of view31mm ~ 4.9mm
Working Distance100mm
Binocular Angle of View45°

HeiScope HEI-SZIII-B2 SZ05031121stereo zoom microscope

Total magnification = Zoom range x eyepieces x auxiliary lens

Optical Specifications:

Auxiliary Lens0.3X0.4X

0.5X

0.75X1X1.5X2.0X
Working Distance (mm)287mm

217mm

177mm

117mm

100mm

47mm

26mm

10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

13.4x-90.0x


FOV 109.5-16.382.1-12.265.7-9.8

43.8-6.5

32.8-4.9

21.9-3.3

16.4-2.4

15X Mag.

3.0x-20.3x

4.0x-27.0x

5.0x-33.8x

7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x

FOV 79.6-11.9

59.7-8.9

47.8-7.1

31.8-4.7

23.9-3.6

15.9-2.4

11.9-1.8

20X Mag.

4.0x-27.0x

5.4x-36.0x

6.7x-45.0x

10.1x-67.5x

13.4x-90.0x

20.1x-135.0x

26.8x-180x


FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x

FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x

FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5

HEIScope HEI-SZIII-B2 is a powerful stereo zoom microscope perfect for your professional inspection needs.
