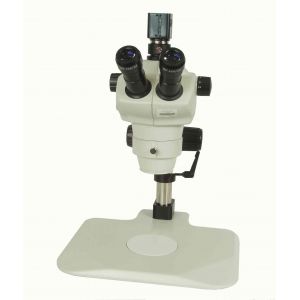

HEI-SZII-USB-PS-AR HEIScope SZII Stereo Zoom?"True" Trinocular Microscope with USB Color Camera

List price: $2,644.52
$2,300.00
You save: $344.52 (13%)
HEI-SZII-USB-PS-AR
+

HEIScope's HEI-SZII-USB True Trinocular System includes: HEI-UCM-1300 2.0 Mega Pixel Color CMOS USB2.0 High Resolution (1280x1024) Camera with Digital Imaging and Measurement Software on a Post Stand with fiber optic illuminator and annular ring light, and a Built in 0.4x Video Coupler.

Stereo image with longer depth of field & higher resolution
Zoom magnification: 8X-50X, zoom ratio 1:6.3
Zooming knob: with click-stops
Eyepieces inclination at 45º
Interpupillary distance: 52mm-75mm
Diopter: ±5 Diopter
Working distance: 115mm (1x)
Video Image Port: True Trinocular, built in 0.4x video coupler
Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
Can be used for teaching, scientific research, electronic testing and more

Vendors :
HEIScope
HEI-EP-A20
$230.08 $150.00

HEI-EP-A20 SZ402104 20x Wide Focus eyepiece for the SZII Scopes

+

HEI-EP-A15
$224.15 $125.00
HEI-EP-A15 SZ402103 15x Wide Focus eyepiece for the SZII Scopes
+

HEI-EP-A10
$194.70 $100.00

HEI-EP-A10 SZ402101 10x Adjustable Wide Focus Eyepiece for the SZII Scopes

+
HEI-AL-A20
$212.30 $125.00
HEI-AL-A20 SZII 2.0x Auxiliary lens SZ403105
+

HEI-AL-A05
$212.30 $125.00
HEI-AL-A05, HEIScope
HeiScope HEI-AL-A05 0.5x auxiliary lens for the HEI-SZII series microscopes SZ403102
+

SZII Instruction Manual (SZ2_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 214 Kb) [Download]

Pneumatic Arm Instruction Manual (Pneumatic_Arm_Instruction_Manual.pdf, 73 Kb) [Download]

Fiber Optic Illuminator with Annular Ring Light Instruction Manual (MA312101-MA312102_Fiber_Optic_Illuminator_Instruction_Manual.pdf, 186 Kb) [Download]

Camera and Imaging Software Manual (UCM1300Manual.pdf, 1,436 Kb) [Download]
