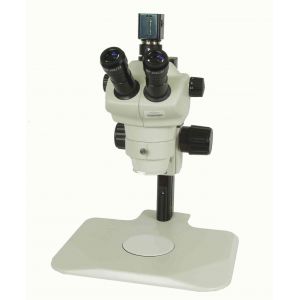

HEI-SZII-USB-TS-LED HEIScope SZII Stereo Zoom?"True" Trinocular Microscope with USB Color Camera

List price: $2,282.28
$1,900.00
You save: $382.28 (17%)
HEI-SZII-USB-TS-LED
+

HeiScope features powerful stereo zoom microscopes perfect for your professional inspection needs. HeiScope offers Binocular and Trinocular (True Trinocular) models with vivid images, big depth of focus, wide visual field, distinct stereo vision in a compact structure. You'll be delighted by the quality and performance of these instruments. (5 year Manufacturer's warranty!)

  • Stereo image with longer depth of field & higher resolution
  • Zoom magnification: 8X-50X, zoom ratio 1:6.3
  • Zooming knob: with click-stops.
  • Eyepieces inclination at 45º
  • Interpupillary distance: 52mm-75mm
  • Diopter: ±5 Diopter
  • Working distance: 115mm (1x)
  • Video Image Port: True Trinocular, built in 0.4x video coupler.
  • Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
  • Can be used for teaching, scientific research, electronic testing and more.

Optical Data:

Auxiliary LensWorking Distance (mm)

Eyepieces

10X (Φ22mm)15X (Φ16mm)20X (Φ12.5mm)30X (Φ7mm)
Mag.FOV (mm)Mag.FOV (mm)Mag.FOV (mm)Mag.FOV (mm)
1X1158~50x27.5~4.412~75x20~3.216~100x15.6~2.524~150x8.8~1.4
0.5X2114~25x55~8.86~37.5x40~6.48~50x31.2~512~75x17.6~2.8
2X43.516~100x13.8~2.224~150x10~1.632~200x7.8~1.348~300x4.4~0.7


Vendors :
HEIScope
HEI-EP-A20
$230.08 $150.00

HEI-EP-A20 SZ402104 20x Wide Focus eyepiece for the SZII Scopes

+

HEI-EP-A15
$224.15 $125.00
HEI-EP-A15 SZ402103 15x Wide Focus eyepiece for the SZII Scopes
+

HEI-EP-A10
$194.70 $100.00

HEI-EP-A10 SZ402101 10x Adjustable Wide Focus Eyepiece for the SZII Scopes

+
HEI-AL-A20
$212.30 $125.00
HEI-AL-A20 SZII 2.0x Auxiliary lens SZ403105
+

HEI-AL-A05
$212.30 $125.00
HEI-AL-A05, HEIScope
HeiScope HEI-AL-A05 0.5x auxiliary lens for the HEI-SZII series microscopes SZ403102
+

SZII Instruction Manual (SZ2_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 214 Kb) [Download]

Track Stand Manual (Track_Stand_Instruction_Manual.pdf, 213 Kb) [Download]

LED Ring Light Manual (HEI-RL-LED-60_LED_Ring_Light_Instruction_Manual.pdf, 54 Kb) [Download]

Camera and Imaging Software Manual (UCM1300Manual.pdf, 1,436 Kb) [Download]
