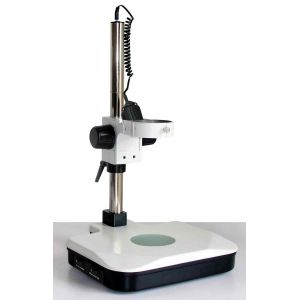

View Solutions ST02011224 Series HH Dual Illuminated Post Stand with 83mm Microscope Opening.
View Solutions ST02011224 85mm HH Dual Illuminated Post Stand
The View Solutions ST02011224 85mm Top Halogen Spot Light and Bottom Halogen Light Stand. The View Solutions ST02011224 has a 85mm Scope Holder. The View Solutions ST02011224 Vertical Post Height: 305mm. The View Solutions ST02011224 Base Dimensions: 320x305x60mm. The View Solutions ST02011224 HH Dual Illuminated Light. Top Illumination: Oblique Top Spot Light.
Warranty: 1 Year
View Solutions ST02011224 85mm HH Post Stand Specifications
| Post Stand | Stand Type | Post Stand | |
| Holder Adapter Type | 85mm Scope Holder | ||
| Vertical Post Height | 305mm | ||
| Maximum Vertical Post Extended Length | 150mm | ||
| Vertical Post Dia. | 32mm | ||
| Base Type | Illumination Base | ||
| Base Shape | Rectangle | ||
| Base Mounting Size | M29x1.5-6h | ||
| Base Dimensions | 320x305x60mm | ||
| Focus Mode | Manual | ||
| Focus Distance | 50mm | ||
| Coarse Focus Distance per Rotation | 21mm | ||
| Focusing Knob Tightness Adjustable | Tightness Adjustable | ||
| Center Distance from the Hole to the Scope Holder | 150mm | ||
| Illumination Type | HH Dual Illuminated Light | ||
| Top Illumination | Obligue Top Light | ||
| Top Illumination Type | Halogen Light | ||
| Bottom Illumination Type | Halogen Light | ||
| Input Voltage | AC 90~265V 50/60Hz | ||
| Output Voltage | DC 12V | ||
| Output Power | 30W | ||
| Power Cord Connector Type | USA 3 Pins | ||
| Power Cable Length | 1.8m | ||
| Surface Treatment | Spray Paint | ||
| Material | Metal | ||
| Color | White | ||
| Net Weight | 5.80kg (12.79lbs) | ||
| Dimensions | 320x305x518mm (12.598x12.008x20.394″) |
| Microscope Plate | Black White Plate | Plate Type | Black White Plate |
| Plate Material | Plastic | ||
| Plate Size | 95x5mm | ||
| Color | Black,White | ||
| Net Weight | 0.04kg (0.09lbs) | ||
| Clear Glass Plate | Plate Type | Clear Glass Plate | |
| Plate Material | Clear Glass | ||
| Plate Size | 95x5mm | ||
| Net Weight | 0.04kg (0.09lbs) |
| Aperture Diaphragm | Transmitted Illumination Iris | Aperture Diaphragm Mounting Position | Vertical Illuminator |
| Aperture Diaphragm Outer Dia. | 91mm | ||
| Surface Treatment | Electroplating Black | ||
| Material | Metal | ||
| Color | Black | ||
| Net Weight | 0.03kg (0.07lbs) | ||
| Applied To | SA0216 Series Illumination Base |
