JBC Tools TESE-1A Precision Hot Air Station (Includes all accessories)

List price: $2,750.00
$2,002.50
You save: $747.50 (27%)
TESE-1A
+

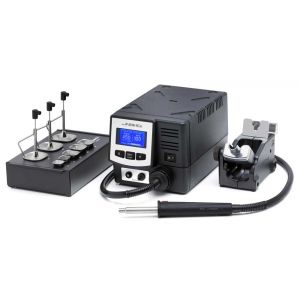

JBC Tools TESE-1A Precision Hot Air Station

The JBC Tools TESE-1A is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.

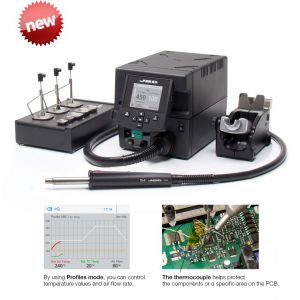

JBC Tools TESE-1A Hot Air Profile Mode

JBC Tools TESE-1A Hot Air Station features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision. You can control temperature values and air flow rate by creating up to 25 profiles.

JBC Tools TESE-1A Control Thermocouple

You can read the temperature at a specific point on the PCB with the control thermocouple PH218. It helps protect the components or a specific area on the PCB.

JBC Tools TESE-1A Hot Air Station Auto Stop Function

The JBC Tools TESE-1A Hot Air Station auto-stop function is a safety measure which ensures the heat is automatically cut off when the tool is in the T-SD stand. The JBC Tools TESE-1A Hot Air Station comes with a complete extractor desk, tripods, protectors & extractors listed below.

JBC Tools TESE-1A Product Composition

Control Unit: TESE-1A Hot Air Station
Tools: TE-TB Precision Heater hose set
Stands: TE-SD
Accessories: PH218 Thermocouple Type K, T2050 Tripod ø39 mm, T2250 Tripod ø85 mm, TN9209 Nozzle for TE heater, TN9208 Nozzle for TE heater, E2052 Extractor 20 x 20 mm, TN9080 Nozzle for TE heater, E2064 Extractor 20 x 26 mm, E2184 Extractor 24 x 24 mm, P2220 Protector 10 x 10 mm, P2235 Protector 12 x 17 mm, P4000 Protector 12,4 x 12,5 mm, P2230 Protector 15 x 15 mm, P4010 Protector 17 x 17 mm, 0008752 Extractor Desk.

JBC Tools TESE-1A Hot Air Station Specifications

Weight 4.722 kg (10.41 lb)
Dimensions (Control Unit) 148 x 184 x 140 mm
Voltage(AC) 120V / 100V
Input Fuse 8A (120V and 100V)
Nominal power 300W
Temperature selection Room Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp. 10-40 ºC (50-104 ºF)
Air Flow Range 2-17 SLPM
Vacuum 30% / 228 mmHg / 9 inHg
Rated Current 7A (100v - 120V)
USB-B connector station-PC
P-005 Pedal Connection
ESD Safe
Package weight 5.688 kg (12.54 lb)
Package dimensions 474 x 368 x 195 mm

Purchase a JBC TESE-1A Precision Hot Air Station from Howard Electronics Today!

Part No.:
TESE-1A
Vendors :
JBC Tools

TESE-1A Manual (TESE-A_MANUAL.pdf, 3,292 Kb) [Download]

TESE-1A Exploded View (EXPLODED-TESE-A.pdf, 2,094 Kb) [Download]
