JBC Tools JTSE-1A is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.

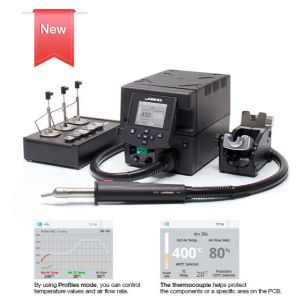

The JBC Tools JTSE-1A Hot Air Station features two work modes -manual or profile- to manage efficiently the temperature and the hot air flow.
Using the menu in the JBC Tools JTSE-1A Hot Air Station, you can personalize over 20 parameters to help manage the soldering process.

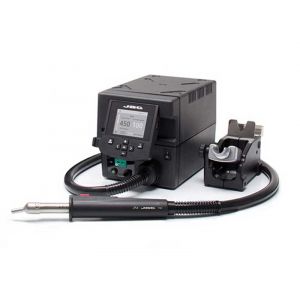

JBC Tools JTSE-1A Hot Air Station
The JBC Tools JTSE-1A Hot Air Station works with the JT-TA heater and incorporates a USB connector (type B).

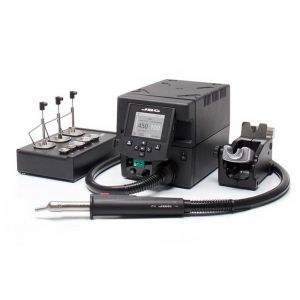

The JBC Tools JTSE-1A comes with the complete extractor desk and the JT-SD Stand that guarantees the Auto-stop function when the tool is at rest.
JBC Tools JTSE-1A High Power Hot Air Station Specification
|Weight||5,7 kg (12,6 lb)|
|Size||See individual modules|
|Temperature selection||Room Temperature / 150-450 ºC (300-840 ºF)|
|Ambient operating temp.||10-40 ºC (50-104 ºF)|
|Air Flow Range||6 - 45 SLPM|
|Vacuum||30% / 228 mmHg / 9 inHg|
|Package weight||6.7 kg (14.9 lb)|
|Package dimensions||475x370x200 mm|
JBC Tool JTSE-1A Hot Air Station Accessories Included.
Control Unit: Hot Air
Tools: JT-T1A 100V/120V - Heater hose set
Accessories: PH218 Thermocouple Type K, T2050 Tripod ø39 mm, T2250 Tripod ø85 mm, JN2020 Nozzle for JT heater, JN2015 Nozzle for JT heater, JN2012 Nozzle for JT heater, E2052 Extractor 20 x 20 mm, E2064 Extractor 20 x 26 mm, E2184 Extractor 24 x 24 mm, P2220 Protector 10 x 10 mm, P2235 Protector 12 x 17 mm, P4000 Protector 12,4 x 12,5 mm, P2230 Protector 15 x 15 mm, P4010 Protector 17 x 17 mm, 0008752 Extractor Desk
Process to desolder using JBC Tools JTSE-1A hot air station and extractors
Tech Note: This is the only process that I know of that almost eliminates all of the solder on the leads during extraction, plus all leads are as formed as they were on the board. This allows the I.C. to be reinstalled again in case it was prematurely removed.
Purchase a JBC Tools JTSE-1A Hot Air Station Today!
