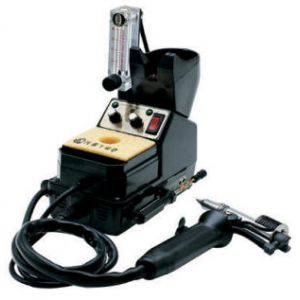

EDSYN TSX70 SMT Reflow Vacuum Rework Station

List price: $3,776.20
$3,200.00
You save: $576.20 (15%)
TSX70
+

Features and Benefits

  • Dual controls for hot gas and tip temperatures to produce even heating of the board
  • Micro adjustable and easy to read air flow indicator
  • Runs on shop air or nitrogen 20 - 80 psi
  • Use for site preparation and reinstallation of QFP's
  • Recommended and utilized by major manufacturers and subcontractors for site preparation in high volume BGA programs
  • Nitrogen can be used to reduce oxidation and bridging


Specifications

Power Requirements120V, 60Hz
Power Rating39W - 330W
Heater Rating24V, 45W and 24V, 70W
Temperature Range400°F-800°F/205°C-427°C
Temperature Regulation±6°F/±3°C
Tip to Ground Voltage Leakage/Resistance<2mV/<2 ohms
Overall Dimension5.8"W x 10"H x 8.8"D
147mm x 254mm x 224mm
Weight
Power Supply6.2lbs/2.8kg
Desoldering Hand Tool13.5oz/383g
Vendors :
Edsyn
