CD-1SE JBC Tools Precision Soldering Station

In Stock!

We Guarantee Lowest Prices!
Low Price Guarantee
Find a Better price
We'll Beat It.
List price: $650.00
$494.10
You save: $155.90 (24%)
CD-1SE

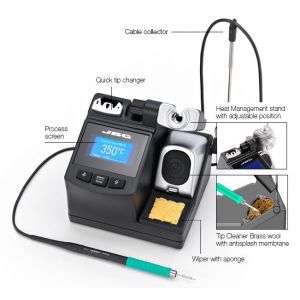

CD-1SE JBC Tools is the NEWEST 120V Compact Series Soldering Station. The JBC CD-1SE has new functions and features that will make your soldering job easier than ever before.

CD-1SE JBC Tools Lead Free Soldering Station

CLICK HERE to see the CD-1SQE without soldering cartridges

(so you can purchase exactly what you prefer).

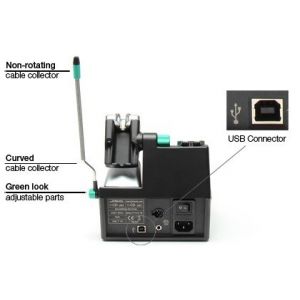

CD-1SE JBC Tools Soldering Station works with the JBC Tools exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. It features a USB connector to update software, create graphs and manage parameters from a PC. CD-SE works with the lightest and ergonomic T210 Handpiece and the C210 cartridges.

JBC Tools CD-1SE Soldering Station for precision electronic applications.

JBC Tools CD-1SE soldering station models are a basic level soldering station that was designed for the everyday user.

JBC Tools CD-1SE soldering station includes: T210-A handpiece, C210-001 and C210-008 soldering cartridges.

JBC Tools CD-1SE is the best soldering station sold on today!

CD-1SE JBC Tools Soldering Station Specifications:

Weight: 2.6 kg (5.7 lb)
Size: 150 x 175 x 145 mm
Voltage (AC): 120V
Input Fuse: 2A
Output Peak Power: 130W / 23.5 V
Temperature Selection: 90-450 C / 190-840 F
Tip to Ground Resistance: <2 ohms
Tip to Ground Voltage: <2mV RMS
Ambient Operating Temp.: 10-40 C / 50-104 F
Package Dimensions: 235x235x260mm
USB Input Port
ESD Safe

Purchase a JBC Tools CD-1SE Soldering Station sold by Howard Electronics Today!

Vendors :
JBC Tools
Weight:
2.6 kg / 5.5 lb
Shipping Weight:
3 kg (6.6 lb)
Input Fuse:
2A
Ambient operating temp.:
10-40 ºC (50-104 ºF)
C210-023
$47.00 $42.30

C210023 JBC Tools Soldering Chisel Cartridge Tip 0.4mm x 0.2mm

+

C210-024
$47.00 $42.30

C210024 JBC Tools Soldering Chisel Cartridge Tip 0.8mm x 0.3mm

+

C210-022
$47.00 $42.30

C210022 JBC Tools Soldering Chisel Cartridge Tip 1.3mm x 0.4mm

+

C210-021
$47.00 $42.30

C210021 JBC Tools Soldering Chisel Cartridge Tip 0.6mm x 0.3mm

+

C210-018
$68.00 $55.80

C210018 JBC Tools Soldering Knife Cartridge Tip 3.4mm x 0.3mm

+

C210-020
$47.00 $42.30

C210020 JBC Tools Soldering Conical Cartridge Tip 0.1mm

+

C210-019
$47.00 $42.30
c210019, JBC Tools

C210019 JBC Tools Soldering Chisel Cartridge Tip 0.2mm x 0.1mm

+

C210-025
$68.00 $55.80

C210025 JBC Tools Cartridge Pin / Connector 1.1mm Tip

+

C210-030
$50.00 $45.00

C210030 JBC Tools Cartridge 2mm Spoon Tip

+

C210-031
$47.00 $42.30

JBC Tools C210031 bevel cartridge tip appropriate for precision soldering jobs with medium power requirements

+

C210-029
$50.00 $45.00

JBC Tools C210-029 cartridge Spoon Tip are appropriate for precision soldering jobs with medium power requirements.

+

C210-028
$50.00 $45.00

JBC Tools C210-028 cartridge Spoon Tip are appropriate for precision soldering jobs with medium power requirements.

+

C210-027
$47.00 $42.30

C210027 JBC Tools Bevel Cartridge 1.5mm Tip

+

C210-017
$68.00 $55.80

C210-017 JBC Multilayer Soldering Cartridge

+

C210-016
$47.00 $42.30

C210016 JBC Tools Soldering Conical Cartridge Tip 0.3mm x 4.5mm

+

C210-006
$47.00 $42.30

C210006 JBC Tools Bevel Soldering Cartridge Tip 1mm x 4.6mm

+

C210-007
$47.00 $42.30

C210007 JBC Tools Soldering Chisel Cartridge Tip 2.3mm x 0.7mm

+

C210-005
$47.00 $42.30

C210005 JBC Tools Soldering Conical Cartridge Tip 1mm

+

C210-004
$47.00 $42.30

C210004 JBC Tools Bent Soldering Conical Cartridge Tip 0.7mm x 5.5mm

+

C210-002
$47.00 $42.30

C210002 JBC Tools Soldering Conical Cartridge Bent Ø 0.2mm Tip

+

C210-003
$47.00 $42.30

C210003 JBC Tools Soldering Conical Cartridge Tip 0.6mm x 4.5mm

+

C210-008
$47.00 $42.30

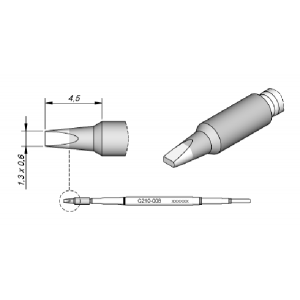

C210008 JBC Tools Soldering Chisel Cartridge Tip 1.3mm x 0.6mm

+

C210-009
$47.00 $42.30

C210009 JBC Tools Soldering Conical Cartridge Tip 0.2mm x 6mm

+

C210-014
$47.00 $42.30

C210014 JBC Tools Bent Soldering Cartridge Tip 0.5mm x 5.5mm Fine Pitch Applications

+

C210-015
$68.00 $55.80

C210-015 JBC Inside Connector Soldering Cartridge

+

C210-013
$47.00 $42.30

C210013 JBC Tools Soldering Conical Cartridge Tip 0.5mm x 6mm

+

C210-012
$68.00 $39.60

C210012 JBC Tools Soldering Cartridge Mini-Wave Tip for Fine Pitch Applications

+

C210-010
$47.00 $42.30

C210010 JBC Tools Soldering Bent Cartridge Tip 0.3mm x 5.5mm

+

C210-001
$47.00 $42.30

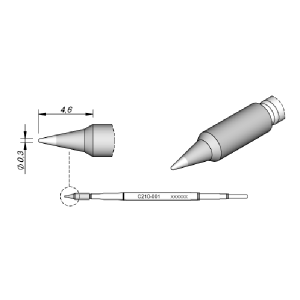

C210-001 JBC Tools 0.3mm Conical Soldering Tip Cartridge

+
T210-A
$744.00

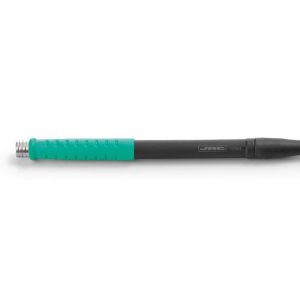

T210-A JBC Precision Micro Handpiece

+

T210-PA
$90.00 $74.00

T210-PA JBC Tools Precision Micro Handpiece with Blue Grip

+

T245-A
$90.00 $74.00

T245-A JBC Tools T245 Standard Handpiece

+

T245-PA
$90.00 $74.00

JBC Tools T245-PA Soldering Handpiece are for both SMD components and for jobs with high power requirements.

+
TT-A
$20.00 $16.00
TT-A, JBC Tools

TT-A TT9900 JBC Lead Free Tip Cleaner

+

CL6205
$6.00 $4.23

CL6205 0006205 Inox cleaning wool

+

CL6210
$5.50 $4.23

CL6210 JBC Brass Wool for CL9885 Stand

+

S0354
$3.70

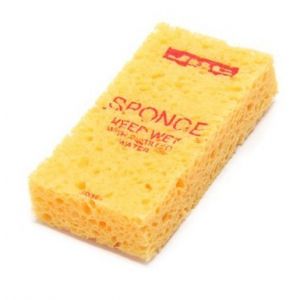

S0354 JBC Tools Sponge for the CL9885 Tip Cleaning Stand
+

CD-SD Manual (CD-SD_MANUAL.pdf, 2,128 Kb) [Download]

Compact Line Brochure (compact_eng.pdf, 1,215 Kb) [Download]

Exploded View (exploded_cd-sd.pdf, 666 Kb) [Download]
