CD-1SQE JBC Tools Precision Soldering Station (Cartridge C210-001 Included FREE by HeI)

Cartridge
C210-001
Included Free

JBC Stations will now be supplied
without cartridges with the purpose
of allowing the user to choose the
cartridges that best suits their needs
with the exception of this station which
we are giving FREE one C210-001 Cartridge.


List price: $525.00
$414.90
You save: $110.10 (21%)
Price in points: 415 points
CD-1SQE
+

CD-1SQE JBC Tools (Cartridge C245-903 Included FREE by HeI) is the NEWEST 120V Compact Series Soldering Station. The JBC CD-1SQE has new functions and features that will make your soldering job easier than ever before. The CD-1SQE station will be supplied with one FREE Cartridge from HEI with the purpose of allowing the user to choose other cartridges that best suit their needs. The CD-1SQE has many more cartridges that can be purchased from the C210 Cartridge tab above.

CD-1SQE JBC Tools Lead Free Soldering Station

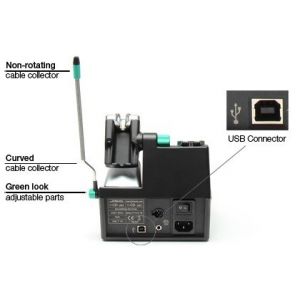

CD-1SQE JBC Tools Soldering Station works with the JBC Tools exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. It features a USB connector to update software, create graphs and manage parameters from a PC. CD-1SQE works with the lightest and ergonomic T210 Handpiece and the C210 cartridges.

JBC Tools CD-1SQE Soldering Station for precision electronic applications.

JBC Tools CD-1SQE soldering station models are a basic level soldering station that was designed for the everyday user.

JBC Tools CD-1SQE soldering station includes: T210-A handpiece.


JBC Tools CD-1SQE Soldering Station comes with:

Control Unit: CD-1SQE with tip cleaning system
Tools: T210-A soldering handpiece
Cartridges: (Cartridge C210-001 Included FREE by HeI)
Consumables: S0354 Sponge, Cl6210 Brass Wool

Click here for more than 30 cartridges of the C210 range of different geometries are available.

CD-1SQE JBC Tools Soldering Station Specifications:

Weight: 2.6 kg (5.7 lb)
Size: 150 x 175 x 145 mm
Voltage (AC): 120V
Input Fuse: 2A
Output Peak Power: 130W / 23.5 V
Temperature Selection: 90-450 C / 190-840 F
Tip to Ground Resistance: <2 ohms
Tip to Ground Voltage: <2mV RMS
Ambient Operating Temp.: 10-40 C / 50-104 F
Package Dimensions: 235x235x260mm
USB Input Port
ESD Safe

Don't want to choose a tip, Click here to purchase a CD-1SE Soldering Station with 2 Tips

Purchase a JBC Tools CD-1SQE Soldering Station sold by Howard Electronics Today!

Vendors :
JBC Tools
Weight:
2.6 kg / 5.5 lb
Shipping Weight:
3 kg (6.6 lb)
Input Fuse:
2A
Ambient operating temp.:
10-40 ºC (50-104 ºF)
C210-023
$44.00 $39.60

C210023 JBC Tools Soldering Chisel Cartridge Tip 0.4mm x 0.2mm

+
Price in points: 40 points

C210-024
$44.00 $39.60

C210024 JBC Tools Soldering Chisel Cartridge Tip 0.8mm x 0.3mm

+
Price in points: 40 points

C210-022
$44.00 $39.60

C210022 JBC Tools Soldering Chisel Cartridge Tip 1.3mm x 0.4mm

+
Price in points: 40 points

C210-021
$44.00 $39.60

C210021 JBC Tools Soldering Chisel Cartridge Tip 0.6mm x 0.3mm

+
Price in points: 40 points

C210-018
$44.00 $39.60

C210018 JBC Tools Soldering Knife Cartridge Tip 3.4mm x 0.3mm

+
Price in points: 40 points

C210-020
$44.00 $39.60

C210020 JBC Tools Soldering Conical Cartridge Tip 0.1mm

+
Price in points: 40 points

C210-019
$44.00 $39.60
c210019, JBC Tools

C210019 JBC Tools Soldering Chisel Cartridge Tip 0.2mm x 0.1mm

+
Price in points: 40 points

C210-025
$62.00 $55.80

C210025 JBC Tools Cartridge Pin / Connector 1.1mm Tip

+
Price in points: 56 points

C210-030
$46.00 $41.40

C210030 JBC Tools Cartridge 2mm Spoon Tip

+
Price in points: 42 points

C210-031
$44.00 $39.60

JBC Tools C210031 bevel cartridge tip appropriate for precision soldering jobs with medium power requirements

+
Price in points: 40 points

C210-029
$46.00 $41.40

JBC Tools C210-029 cartridge Spoon Tip are appropriate for precision soldering jobs with medium power requirements.

+
Price in points: 42 points

C210-028
$56.00 $41.40

JBC Tools C210-028 cartridge Spoon Tip are appropriate for precision soldering jobs with medium power requirements.

+
Price in points: 42 points

C210-027
$44.00 $39.60

C210027 JBC Tools Bevel Cartridge 1.5mm Tip

+
Price in points: 40 points

C210-017
$62.00 $55.80

C210-017 JBC Multilayer Soldering Cartridge

+
Price in points: 56 points

C210-016
$44.00 $39.60

C210016 JBC Tools Soldering Conical Cartridge Tip 0.3mm x 4.5mm

+
Price in points: 40 points

C210-006
$44.00 $39.60

C210006 JBC Tools Bevel Soldering Cartridge Tip 1mm x 4.6mm

+
Price in points: 40 points

C210-007
$44.00 $39.60

C210007 JBC Tools Soldering Chisel Cartridge Tip 2.3mm x 0.7mm

+
Price in points: 40 points

C210-005
$44.00 $39.60

C210005 JBC Tools Soldering Conical Cartridge Tip 1mm

+
Price in points: 40 points

C210-004
$44.00 $39.60

C210004 JBC Tools Bent Soldering Conical Cartridge Tip 0.7mm x 5.5mm

+
Price in points: 40 points

C210-002
$44.00 $39.60

C210002 JBC Tools Soldering Conical Cartridge Bent Ø 0.2mm Tip

+
Price in points: 40 points

C210-003
$44.00 $39.60

C210003 JBC Tools Soldering Conical Cartridge Tip 0.6mm x 4.5mm

+
Price in points: 40 points

C210-008
$44.00 $39.60

C210008 JBC Tools Soldering Chisel Cartridge Tip 1.3mm x 0.6mm

+
Price in points: 40 points

C210-014
$44.00 $39.60

C210014 JBC Tools Bent Soldering Cartridge Tip 0.5mm x 5.5mm Fine Pitch Applications

+
Price in points: 40 points

C210-015
$62.00 $55.80

C210-015 JBC Inside Connector Soldering Cartridge

+
Price in points: 56 points

C210-013
$44.00 $39.60

C210013 JBC Tools Soldering Conical Cartridge Tip 0.5mm x 6mm

+
Price in points: 40 points

C210-012
$44.00 $39.60

C210012 JBC Tools Soldering Cartridge Mini-Wave Tip for Fine Pitch Applications

+
Price in points: 40 points

C210-010
$44.00 $39.60

C210010 JBC Tools Soldering Bent Cartridge Tip 0.3mm x 5.5mm

+
Price in points: 40 points

C210-001
$44.00 $39.60

C210-001 JBC Tools 0.3mm Conical Soldering Tip Cartridge

+
Price in points: 40 points
T210-A
$74.00 $66.60

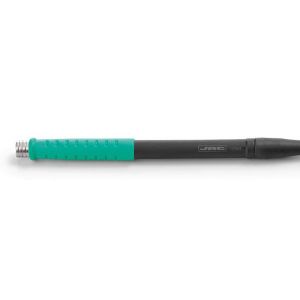

T210-A JBC Precision Micro Handpiece

+
Price in points: 67 points

T210-PA
$74.00 $66.60

T210-PA JBC Tools Precision Micro Handpiece with Blue Grip

+
Price in points: 67 points

T245-B
$74.00

JBC Tools T245-B Soldering Handpiece are for both SMD components and for jobs with high power requirements (e.g. ground plane soldering

+
Price in points: 74 points

T245-C
$74.00 $70.00
T245-C, JBC Tools

JBC Tools T245-C Soldering Handpiece are for both SMD components and for jobs with high power requirements (e.g. ground plane soldering

+
Price in points: 70 points

T245-PA
$74.00

JBC Tools T245-PA Soldering Handpiece are for both SMD components and for jobs with high power requirements.

+
Price in points: 74 points
TT-A
$15.50
TT-A, JBC Tools

TT-A TT9900 JBC Lead Free Tip Cleaner

+
Price in points: 16 points

CL6205
$5.16 $4.50

CL6205 0006205 Inox cleaning wool

+
Price in points: 5 points

CL6210
$4.70 $4.50

CL6210 JBC Brass Wool for CL9885 Stand

+
Price in points: 5 points

S0354
$2.30
S0354 JBC Tools Sponge for the CL9885 Tip Cleaning Stand
+
Price in points: 3 points

CD-SD Manual (CD-SD_MANUAL.pdf, 2,128 Kb) [Download]

Compact Line Brochure (compact_eng.pdf, 1,215 Kb) [Download]

Exploded View (exploded_cd-sd.pdf, 666 Kb) [Download]
