337 Panavise Fixturing Head

List price: $26.96
$22.95
You save: $4.01 (15%)
Price in points: 23 points
337
+

Panavise 337 Fixturing Head sold by Howard Electronics

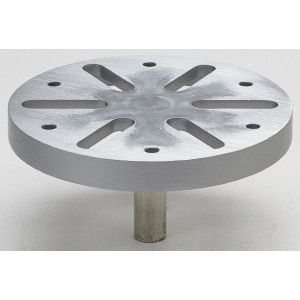

Panavise Model: 337 Fixturing Head

Exceptional choice for woodworkers and pattern makers!

Work can be attached easily to this universal Fixturing Head.

• Six slots are 0.4375" (11.1mm) wide and 1.1875" (30.2mm) long; six 0.25" (6.3mm) bolt holes are evenly spaced on a 4.375" (111.1mm) bolt circle
• Flat surface: 5.375" (136.5mm) in diameter
• Shaft is 4.125" (104.8mm) long and 5/8" (15.9mm) in diameter; compatible with all 300 series Bases
• Height (shaft to top of head): 3.75" (95.2mm), Weight: 11.5oz. (1.3kg)


In Use Example for the Fixturing Head

337 Fixturing Head being used to repair the gear box of an electric motor drive assembly
The more common use of a Model 337 Fixturing Head, wood carving.

Purchase a Panavise 337 Fixturing Head Today.

Part No.:
337
Vendors :
PanaVise
Weight:
11.5oz. (1.3kg)
