381 Panavise Vacuum Base

Panavise 381 Vacuum Base sold by Howard Electronics

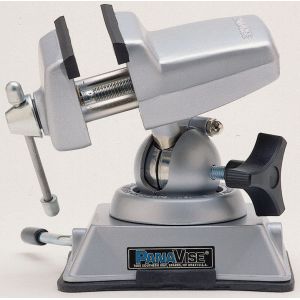

381 PanaVise Vacuum Base

The world's most PORTABLE work holding tool!

Quickly attaches to any smooth, non-porous flat surface with the flip of a lever! Take it anywhere you need it for hobbies, electronics and small home repairs.

• Our Vacuum Base PanaVise is widely used for portable applications
• Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation
• Jaws are 2.5" (63.5mm) wide, 0.5" (12.6mm) tall and open to 2.25" (57.1mm)
• Nylon jaws offer excellent electrical insulation and gentle holding power [continuous heat tolerance up to 200°F (93°C), intermittent heat to 300°F (149°C)]. Interchangeable jaws available
• Base accepts all 300 series Heads and any 5/8" (15.9mm) diameter shaft
• Pad footprint measures 5.125" x 4.25" (130.2mm x 108mm)
• Height: 6.125" (155.6mm), Weight: 2.8 lbs. (1.3kg)

Model: 203 PV Jr. Head	Model: 304 Low Profile Head	Model: 337 Fixturing Head	Model: 343 Nylon Jaws	Model: 344 Grooved Nylon Jaws
Model: 352 High Heat Jaws	Model: 353 Plated Steel Jaws	Model: 354 Brass Jaws	Model: 366 Wide Opening Head	Model: 376 Self-Centering, Extra Wide Opening Head
Model: 380-RK Vacuum Base Repair Kit	Model: 385 Micrometer Head

In Use Example for the Vacuum Base PanaVise
Attaches to any smooth, non-porous surface, for example the side of a truck or van.	When a garage work shop is not available you can use your Model 381 on any smooth non-porous table, including some types of kitchen tables.

Purchase a Panavise 381 Vacuum Base Today.
