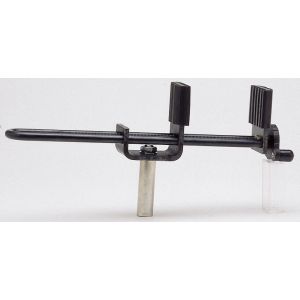

366 Panavise Wide Opening Head

Panavise 366 Wide Opening Head sold by Howard Electronics

Model: 366 Wide Opening Head

Hold larger objects with this general purpose Vise Head!

Jaw pads gently, yet firmly, hold a wide variety of objects including circuit boards, coils and tuners. Jaws open a generous 6".

• Jaws pads are 1.875" (47.6mm) high x 1.5" (38.1mm) wide. Opens to 6" (152.4mm) with jaw pads and 6.25" (158.8mm) without jaw pads
• Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects; reverse the pads and the wide "V" holds delicate cylindrical objects
• Remove jaw pads from steel jaws when working with high heat
• Black oxide coating reduces glare and promotes eye comfort
• Head Length: 11" (279.4mm)
• Compatible with all 300 series Bases
• Height (shaft to top of jaw pads): 5.125" (130.2mm), Weight: 1.6 lbs (0.7kg)

Accessories Available for the Wide Opening Head

Model: 300 Standard Base

Model: 305 Low-Profile Base

Model: 346 Deluxe Neoprene Jaw Pads

Model: 358 Wire Manager

With it's ribbed jaws the Model 366 Wide Opening Head can even be used to hold small Circuit Boards

Instead of clamping here we show a hollow object over the jaws and the jaws opened up to provide the clamping action from the inside.

Purchase a Panavise 366 Wide Opening Head Today.
