Virtual Industries HV-KIT-II-ESD Pick-up Tool sold by Howard Electronics
Virtual Industries HANDI-VAC HV-KIT-II-ESD KIT, Static dissipative, with (3) bent probes, (2) straight probes and (5) conductive silicone vacuum cups;1/8", 3/16", 1/4", 3/8" and 1/2".

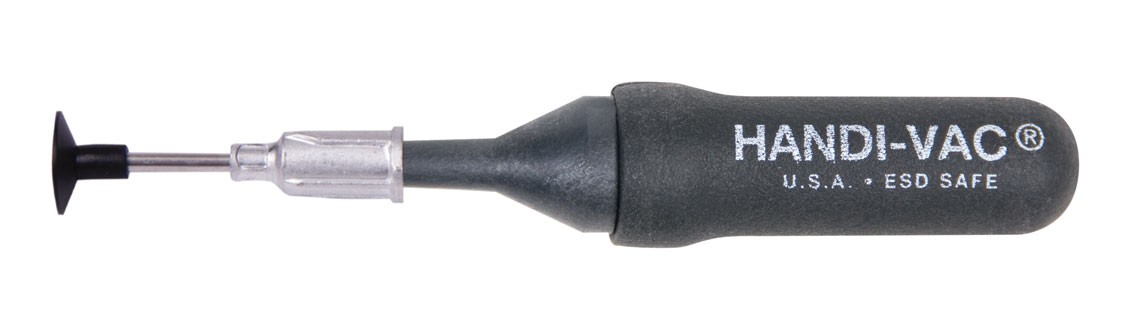

Virtual Industries HANDI-VAC HV-KIT-II-ESD
Our Virtual Industries HANDI-VAC HV-KIT-II-ESD kits are a low cost pick-and-place tool that can go in everybody's tool box.
How to operate the Virtual Industries HANDI-VAC HV-KIT-II-ESD
1. Select a tip with a rubber vacuum cup on a probe that is slightly smaller than the part you want to pick and place. Put the probe snugly on the tip of the Virtual Industries HANDI-VAC HV-KIT-II-ESD tool. Make sure that there is no dust on the rubber vacuum tip. NOTE: Our larger rubber vacuum cups can be placed directly on the Virtual Industries HANDI-VAC HV-KIT-II-ESD tip without using a probe.
2. Gently squeeze the Virtual Industries HANDI-VAC HV-KIT-II-ESD bulb, place the soft suction cup squarely on the pick-and place part, then relax your squeeze. The part is now firmly gripped.
3. Move the part to where you need it and a second squeeze of the Virtual Industries HANDI-VAC HV-KIT-II-ESD bulb releases the part.
Applications for the Virtual Industries HANDI-VAC HV-KIT-II-ESD Tool
Applications for this
Virtual Industries HANDI-VAC HV-KIT-II-ESD tool include SMT parts, metal parts, plastic parts or any item having a smooth-nonporous-surface that the rubber vacuum tweezer tip can seal against. This Virtual Industries HANDI-VAC HV-KIT-II-ESD tool can be used with any of our rubber vacuum cups ranging in size from 3/32" (2.38mm) to 3/4" (19.05mm) in diameter. Use the larger cups to pick up larger and heavier parts. For better precision in part placement see our PEN-VAC or PEN-VAC PRO-Series self contained vacuum pens.
